Sliding Doors
Specifications
THE SAFETY OF REDUNDANT CONTROL
The solutions of the DAS range cover the regulatory requirements of every market, and include:
- Redundant anti-panic system with DAS200RG, and the telescopic version DAS200TRG
- Break-out anti-panic system available on DAS200 e DAS200HD
INTELLIGENT
An advanced control panel which autonomously tests the functions of each component at regular intervals and opens the door
Smart start-up mode with self-acquisition function, including automatic detection and recognition of:
- Passage opening
- Door weight
- Presence and type of lock devices (standard and anti-panic)
- Emergency and backup batteries
Superior energy efficiency with a switching power supply unit offering a wide range of operating voltages
Digital programming with over 90 parameters including speed, timer, position and emergency function parameters
Specifications

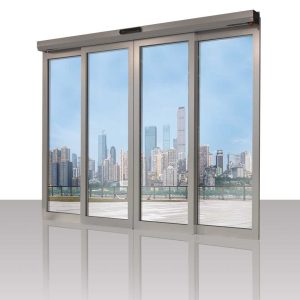

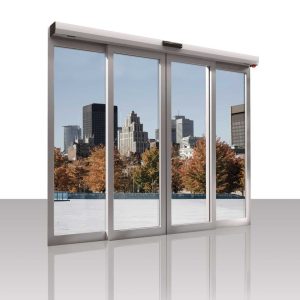

Ditec DAS200 is designed around the needs of convenience and safety of all customers, using the most advanced technologies and premium materials and components. Because of that, it can also offer great performances in terms of clear passage opening, maximum weight of the wings, which can be mounted on DAS200, and opening and closing time performances.
FROM EXTRA-NARROW TO EXTRA-WIDE
With the DAS200 family of sliding door solutions, you can cover an extremely wide range of applications, including extremely narrow passages or ultra-wide openings:
- DAS200/DAS200HD: from 715 mm to 3,240 mm
- DAS200T: from 1,100 mm to 4,320 mm
Specifications

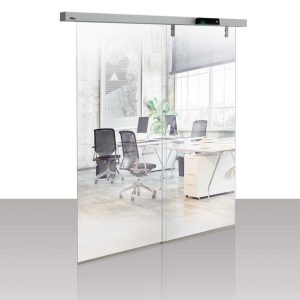

Ditec CIVIK is the operating device for interior sliding doors with one or two wings; versatile, silent and easy to install.
Ditec CIVIK automation features extremely compact sizes (both width and height) and a trendy silver (EURAS C0) finish.
It’s the ideal solution given its trim modern appearance, perfect with full glass and technical attachments for glass.
For hide-away or sliding doors
Glass can be used to fit full dividing walls, moving walls and all types of doors, including sliding or hide-away doors, which add efficiency and comfort, specially in heavy traffic working environments.
Ditec DAS107Plus
Quality & performance without compromise
Specifications
Ditec DAS107PLUS is the sliding door operator able to satisfy all requirements in standard commercial environments with frame weight up to 160 kg.
Designed to be easy and fast to install, Ditec DAS107PLUS is the perfect choice for professionals in door automation who look for low inventory cost and ease of maintenance.
QUALITY & RELIABILITY
Ditec DAS107PLUS is the sliding door operator focusing on the needs of our customers and featuring high quality components at the right value:
- Performing electromechanical operator for up to 160 kg door weight
- Tested up to 1 Million cycles
- Long-lasting automation with 24 Vdc DUNKERMOTOREN™ with built-in Encoder
- Reinforced techno-polymer wheels in DUPONT™ Delrin®
- Fully certified and tested by TÜV SÜD
Swing Doors
Specifications
SMART AUTOMATION TO MAKE YOUR LIFE EASIER

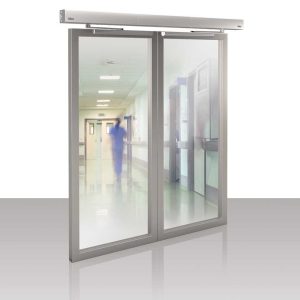

Ditec DAB105 is an electromechanical servo-assisted automation system for swing doors with spring, with 24 V DC gear motor and encoder-managed kinematics, for safe and reliable management of door movement in every situation.
The powerful gear motor easily moves wings up to 200 kg of weight or over 1.2 m of width.
Ditec DAB105 ensures access without barriers and ease of operation.
Performance
- High performance with up to 200 kg door weight and mechanical servo-assisted operator, encoder controlled
- Reliable operator: strong components and real time self monitoring of the operator status
- Safety guaranteed by technological features, opening control system, and motion-detection safety signal
- Very low noise level
- Many additional advanced features make Ditec DAB105 a best in class product.
Specifications

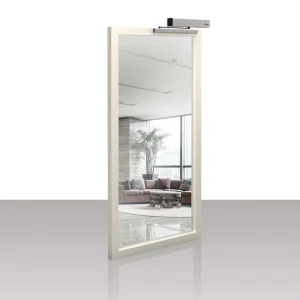

Thanks to its neutral and elegant appearance, the Ditec SPRINT automation system is the ideal solution for both residential and high-class environments, such as professional studios, shops, offices and hotels.
Available in light grey, black or elegant satin-finished aluminium, it is suitable for internal swing doors up to 110 kg and 1.2 metres wide.
Beautiful
The Ditec Spring automation, thanks to its neutral and elegant appearance is the ideal solution for both residential and high-class environments, such as professional studios, shops, offices and hotels.
Available in light grey, black or elegant satin-finished alu-minium, it is suitable for internal swing doors up to 110 kg.
Simple to assemble and install thanks to the lower weight fastening plate and the adjustments which can be set on the electronic card.
Simple configuration according to user preferences and requirements, thanks to the PUSH & GO and LOW ENERGY modes, for total ease of use.
Specifications

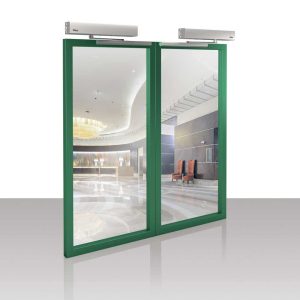

Ditec DAB205 is the top of the range solution for swing door applications: its slim, elegant design make it perfect for any setting.
Ditec DAB205 has an extremely powerful gear reducer which performs opening and contributes to closing helped by a spring; it’s the highest performer in its market segment, it can automate swing doors up to 400 kg in weight and 1.6 m wide.
Performance
- The push-arm version can move doors up to 400 kg in weight; the servo-assisted motor with spring guarantees a reliable closing movement while the encoder offers perfect control of the kinematic movement
- Strong steel mechanical components and the long-lasting Dunker motor guarantee exceptional operator reliability. Ditec DAB205 has been tested up to 1 M cycles
- Perfect dynamic control also for bi-parting doors, it offers many possibilities for managing movement (overlap, contact, no contact, double exit).

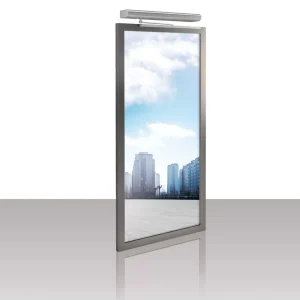

Ditec DAB305
Quality & performance without compromise
Specifications
he Ditec DAB305 electromechanical automatic swing door operator is capable of moving any type of interior or exterior door simply and quietly. The extensive choice of solutions offered makes the DAB305 the ideal swing door operator for any application.
The solution features 3 operating units, all with additional, pre-assembled configuration cards, to guarantee the best performance.
A MODERN, FUNCTIONAL DESIGN
With total height of just 70 mm, the DAB305 automatic operator has sleek, modern looks that are perfectly suited to the design needs of contemporary buildings. The design of the Ditec DAB305 has also been conceived to guarantee fully comprehensive installation: its compact size is particularly suitable for slimmer profiles and smaller areas.
BARRIER-FREE ENTRANCE
The automatic functioning of Ditec operators guarantees streamlined access, as each doBARRIER-FREE ENTRANCEor can be easily opened. Ditec door operating units include a LOW ENERGY mode, to meet the stringent safety requirements of the public sector. The Ditec DAB305 can be activated from a pushbutton, a radar motion sensor or with PUSH&GO and Servo-Assistance functions.
Hermetic Doors
Specifications

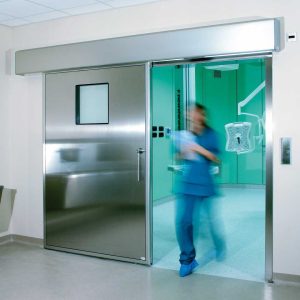

Ditec VALOR HH is an automation system for doors with hermetic closure on all 4 sides; as it closes, the wing moves vertically and horizontally to press against the seals along the entire perimeter of the frame and along the floor.
Ditec VALOR HS is an automation system for doors with hermetic vertical closure and semi-hermetic horizontal closure: the wing provides a partial seal, abutting on the uprights of the frame and touching the crosspiece of the floor.

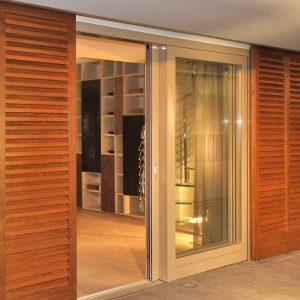

Home Sliding Doors
Specifications
Automation system for sliding frames; easy to install, versatile and silent. Its main features are its small size and the possibility of installing various control systems with push-buttons, radar and other contacts.
For sliding doors weighing up to 80 kg.
Specifications

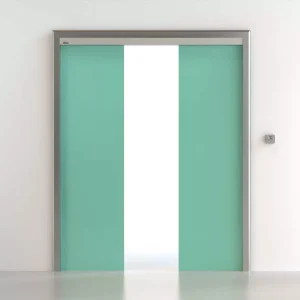

Ditec OLLY C contributes to the better planning of residential space and work environments, making them suitable for a larger number of people and allowing them to perfectly meet the requirements of greater comfort, security and accessibility.
Easy to install, it offers a wide array of possibilities for personalising the operating mode, from simple PUSH&GO, to activation using sensors or radio-controlled operation.
For doors and sliding frames weighing up to 40 kg (1 wing) or 55 kg (2 wings).
